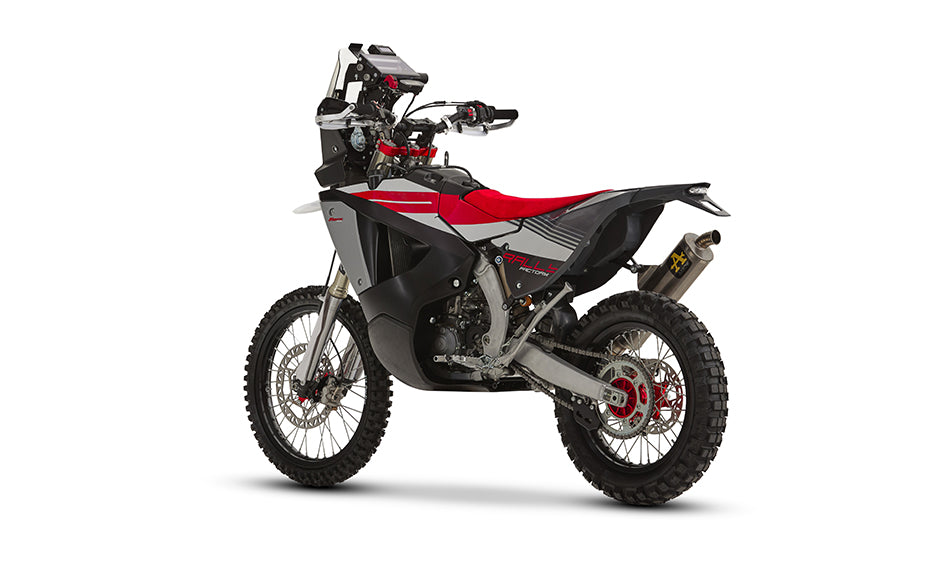

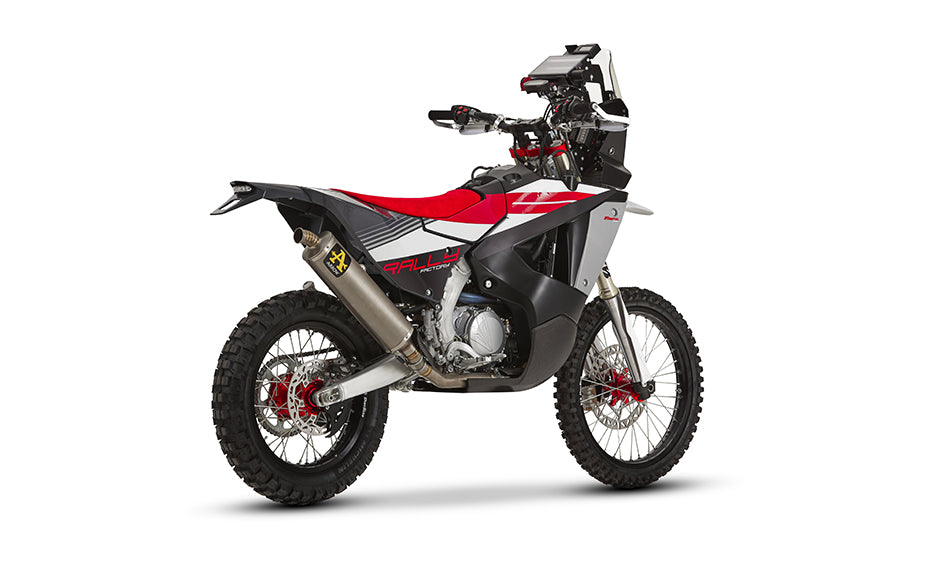

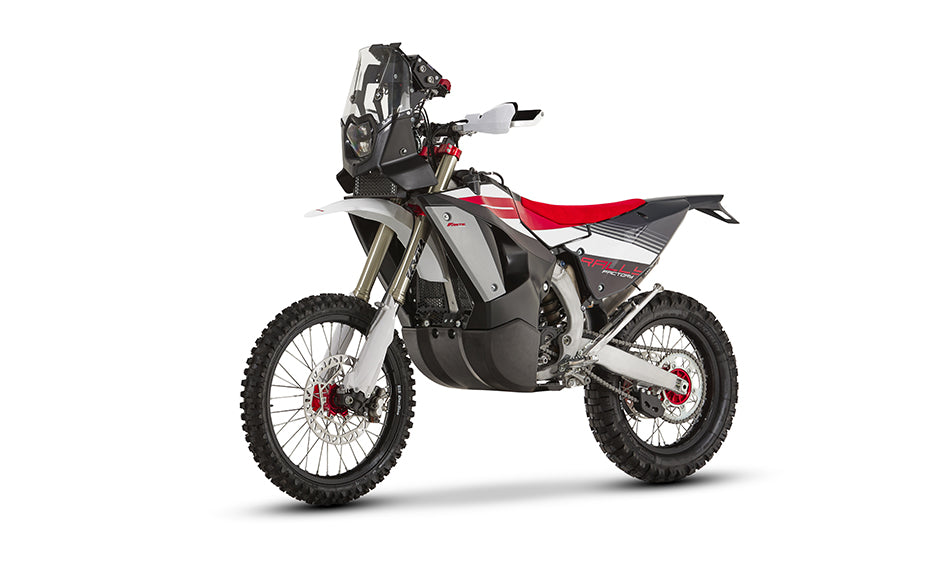

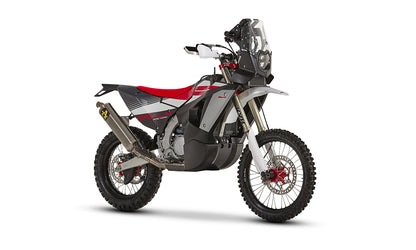

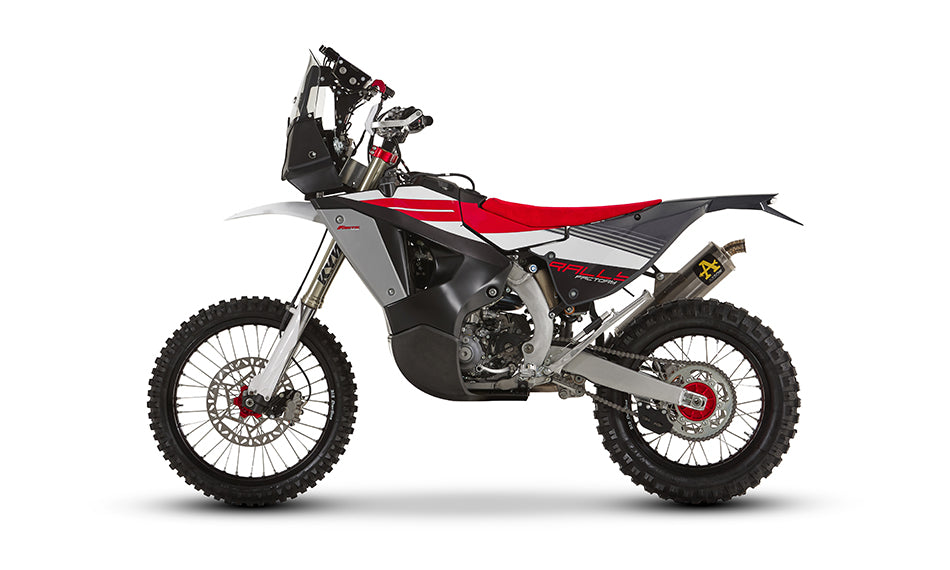

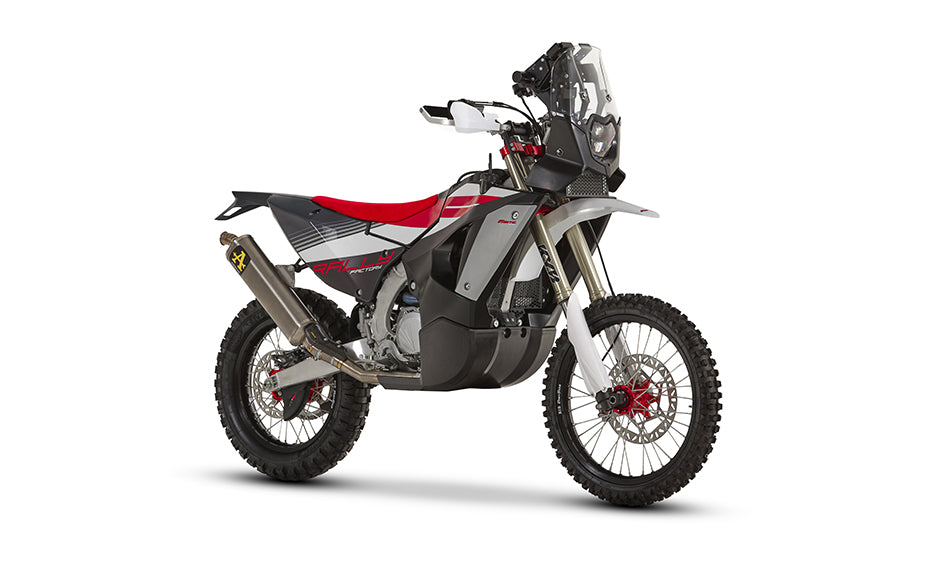

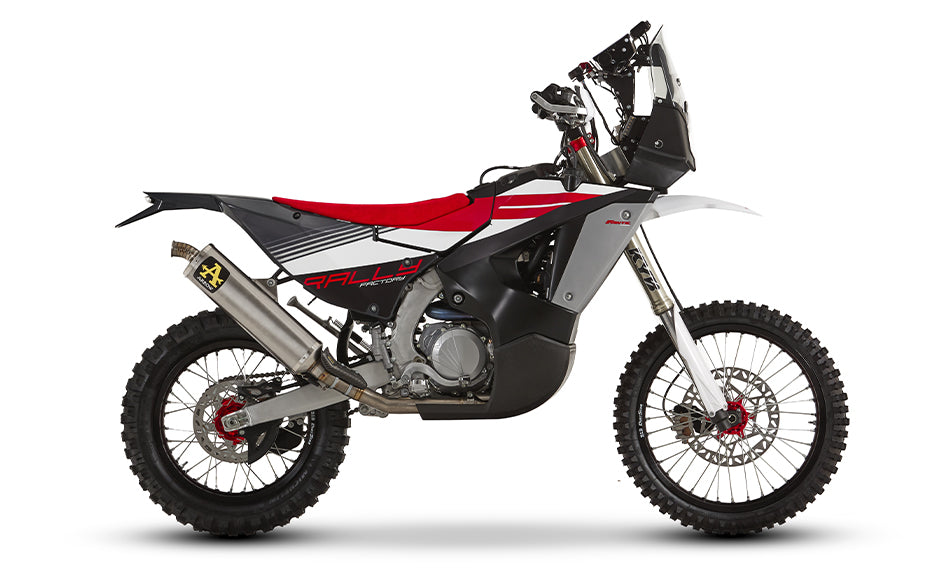

XEF Rally Factory
XEF Rally Factory
The twin sister of our motorbikes racing in Dakar and the Cross Country World Championships is waiting for you and other 49 lucky people around the world. For the launch edition we want to offer you only the very best; therefore, the Factory is full-spec and ready for racing, thanks to a long list of special features.
What are you waiting for? Book your Dakar motorbike, there are only 50!
EXCLUSIVE EXTRAS
In addition to the high-level components, the Factory Launch edition also has quite a few exclusive extras.

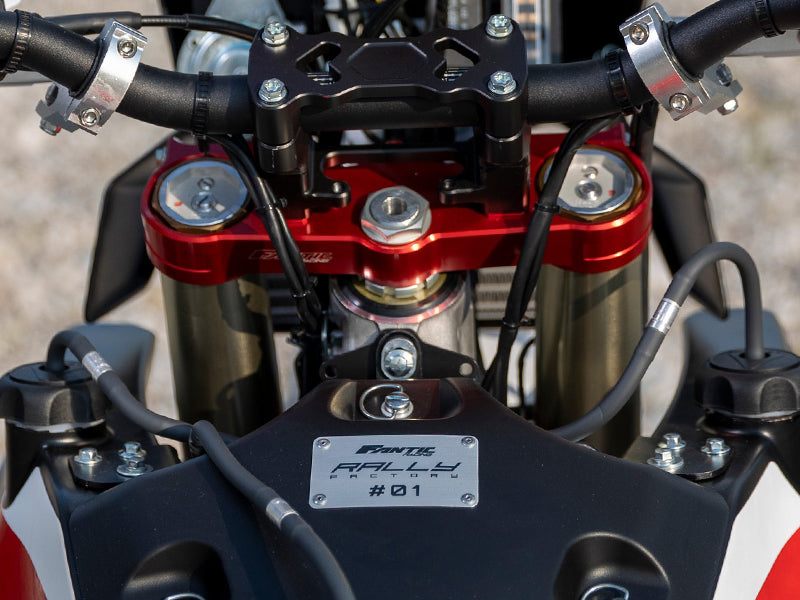

The numbered tag will make your bike unique and you will also receive a race kit comprising a Fantic Rally Jersey and a professional 144 litre trolley tool box, to take your spare parts always with you.
RACE INSTRUMENTATION

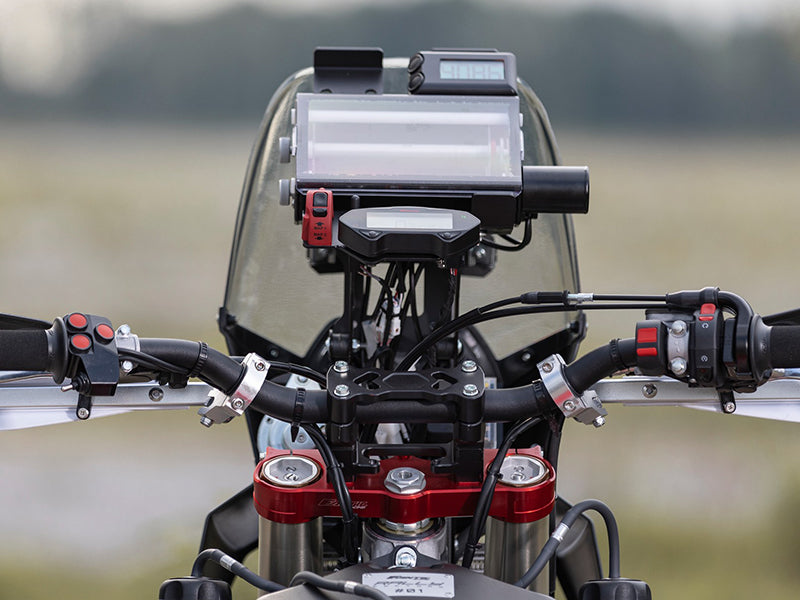

By default, the Factory version features a strong steel and aluminium structure designed specifically to support a professional road book and trip master and allow you to orient yourself in any competition.
It also features practical roadbook controls on the handlebar and is preconfigured for an additional tripmaster.
MAXIMUM RELIABILITY
In international rallies, covering hundreds of miles every day is quite the norm.

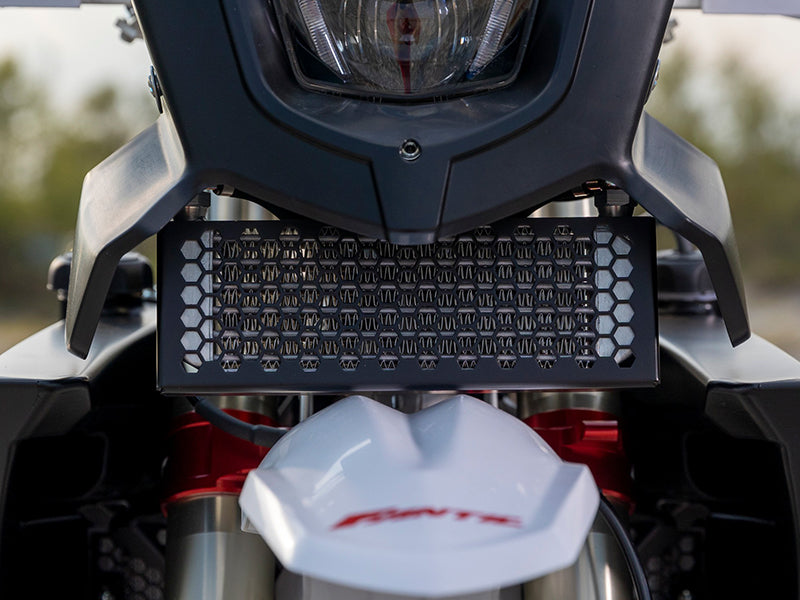

This is why reliability and maximum protection are paramount. XEF RALLY FACTORY features a front-mounted oil radiator, for maximum air flow.
Technical components also include an enhanced oil filter with an additional tank able to ensure the best lubrication in all weather conditions.
LIKE A PRO
Not just a touch of racing red but racing components that help you make the most at every stage of the race.

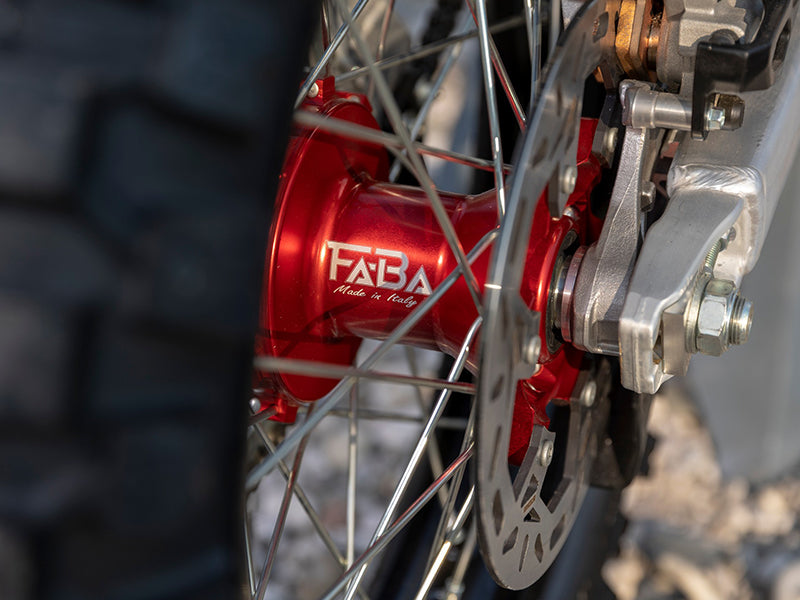

This is why you will find triple clamps and hubs completely made from billet, CNC machining developed, which with their great rigidity and production accuracy guarantee maximum precision and direction.
The rear hub has sprocket support to reduce the reactions to the exuberant 450 twin cam and help you stay focused on your bike for hours.
To reduce stress during long marathons you have the option to easily install a hydraulic steering damper.
PRECIOUS METAL

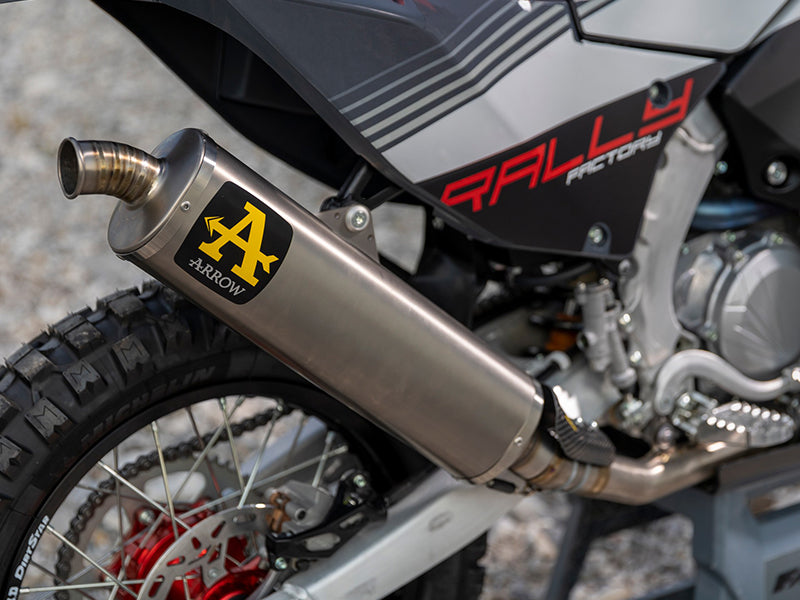

Our powerful and super reliable 450 DOHC in the Factory version features a full titanium exhaust system developed in collaboration with Arrow.
It doesn’t just offer the best performance, it also weighs 1.5 kg less, courtesy of the titanium and the excellent care taken to make this fine component.
Data from the manufacturer. The measured values may differ slightly depending on the type of instrumentation used and environmental conditions present at the time of measurement.
SPECIFICATIONS
ENGINE
Type | Single-cylinder 4-strokes, liquid cooled, 4 valves DOHC
Displacement | 450 cc
Induction | Fuel Injection
Bore | 97.0 mm
Stroke | 60.8 mm
Compression Ratio | 13.0 : 1
Ignition System | TCI
Starting System | Electric starter
Lubrication System | Wet sump
Transmission | 5-speed
Clutch | Wet, multiple-disc
Homologation | Euro5
CHASSIS
Frame type | Aluminium perimeter frame
Caster angle | 27.2°
Trail | 116 mm
Rear Frame | Steel
Swingarm | Aluminium with variable section and progressive link
Rims | 21x1.60 – 18x2.15
Tyres | 90/90x21 - 140/90x18
Brakes | Hydraulic disc ø300mm - Hydraulic disc ø245mm
Front Suspension | KYB ø48 mm, fully adjustable, wheel travel 310 mm
Rear Suspension | KYB, fully adjustable, wheel travel 300 mm
OVERALL DIMENSIONS
Seat Height | 955 mm
Wheelbase | 1480 mm
Kerb Weight | <140 kg
Fuel Tank Capacity | 30 l
