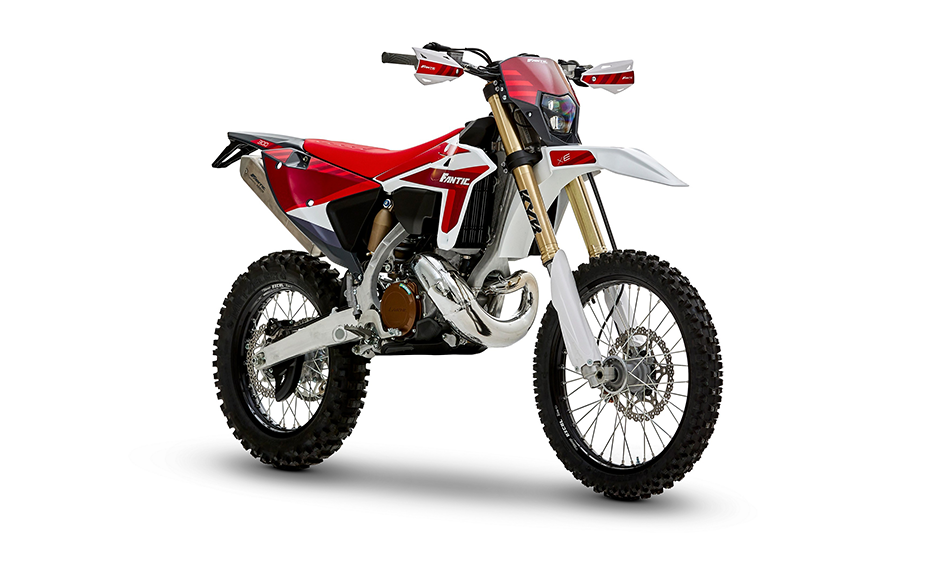

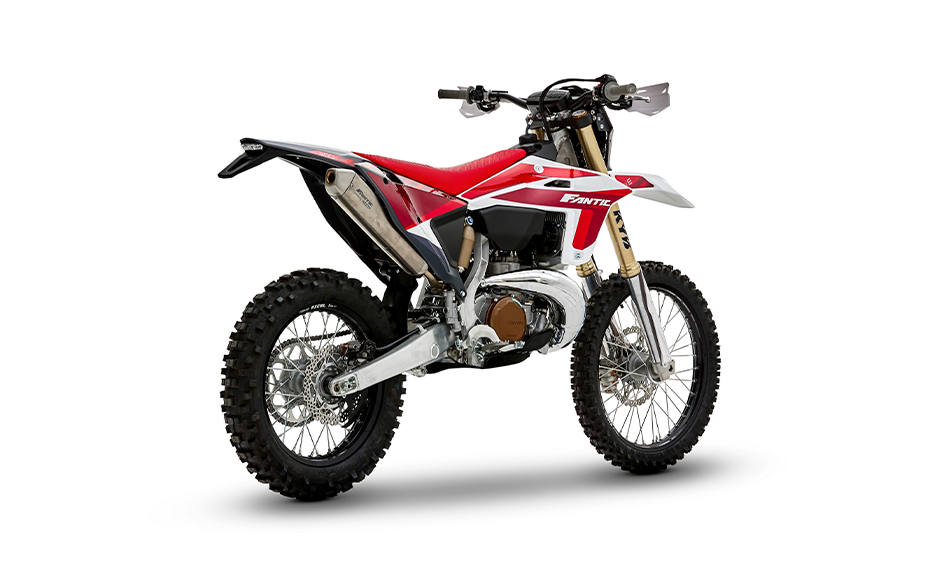

XE 300
XE 300

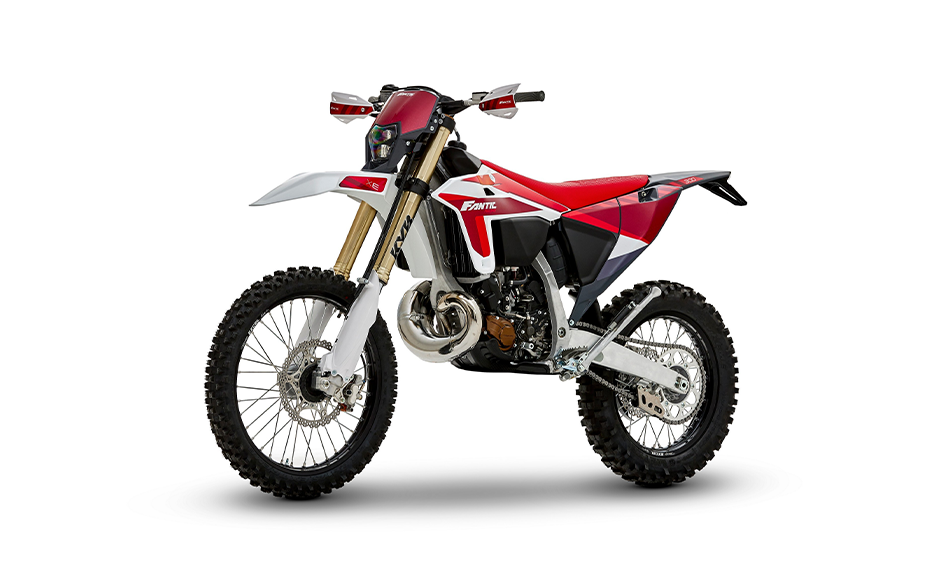

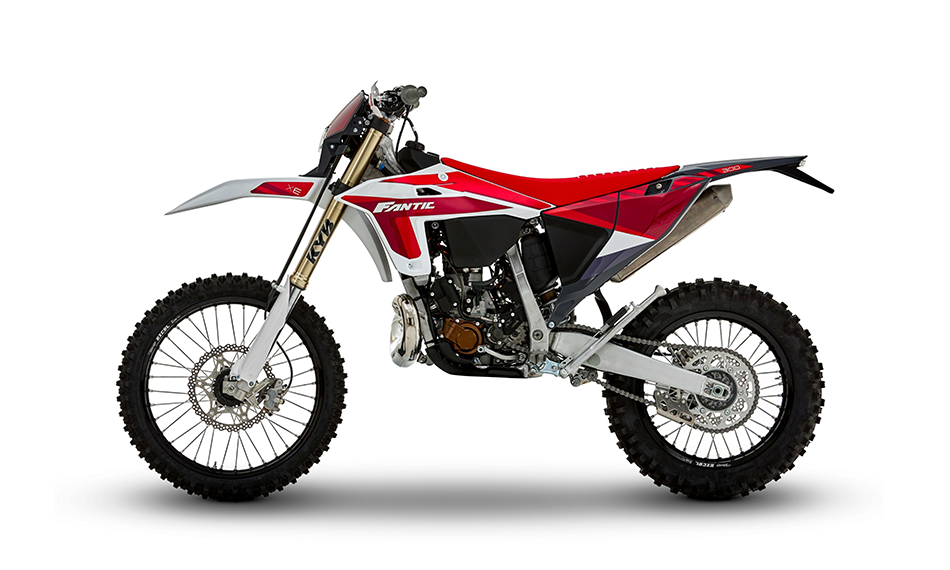

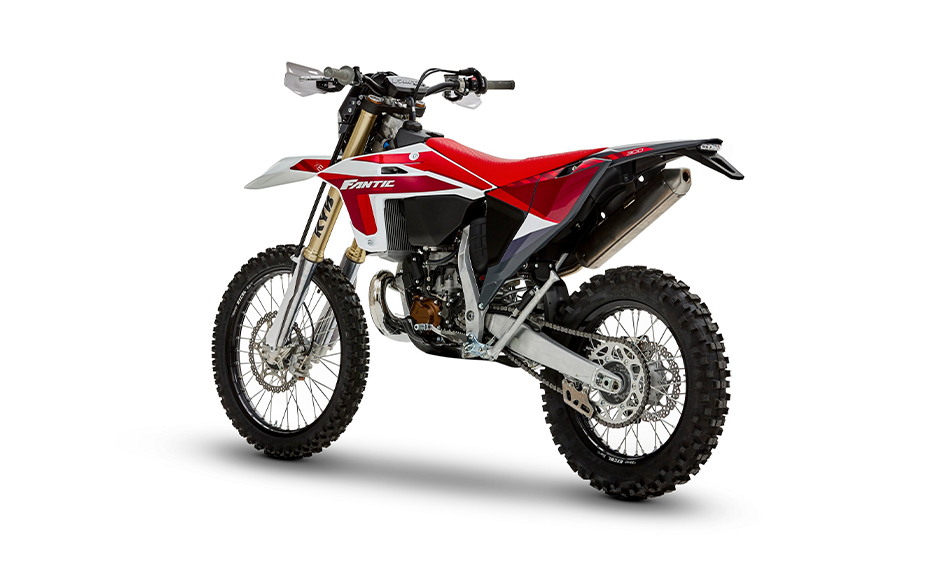

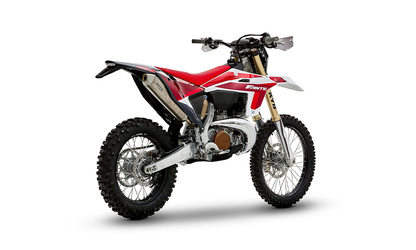

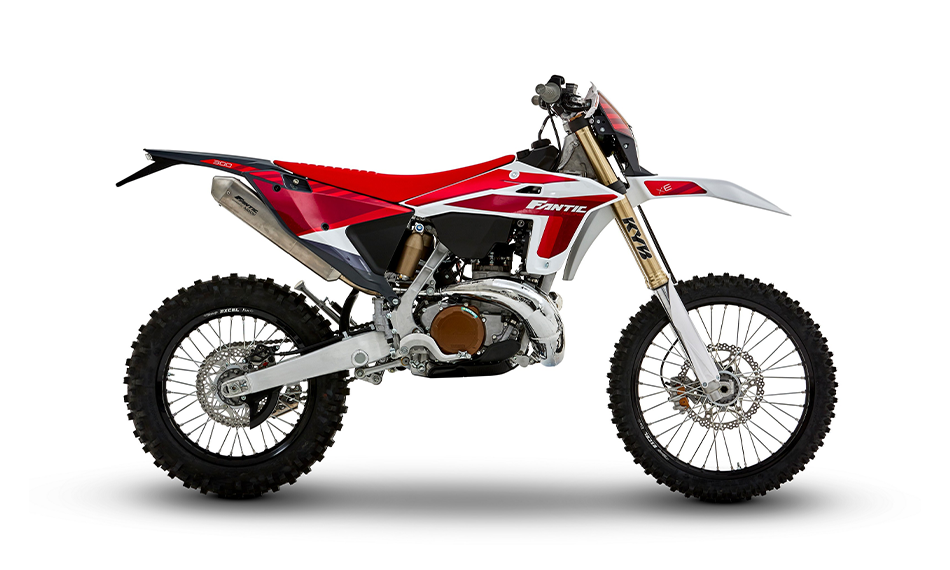

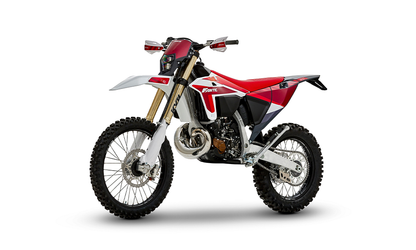

THE ITALIAN HEART BEATS AGAIN: HERE IS THE XE 300 2T
The long awaited XE300 2T powered by the new powerful Minarelli Euro5, with injection and electric start, has been launched on the market. A bike that ensures victories, but which has already won with its new version ridden perfectly by the young Swedish rider Albin Norrbin, all out to win the Enduro Junior2 world title in this magical 2023 for Fantic's enduro (5 World titles). Today, the XE300 is finally ready in the standard version, and will already be on the market by the end of 2023.

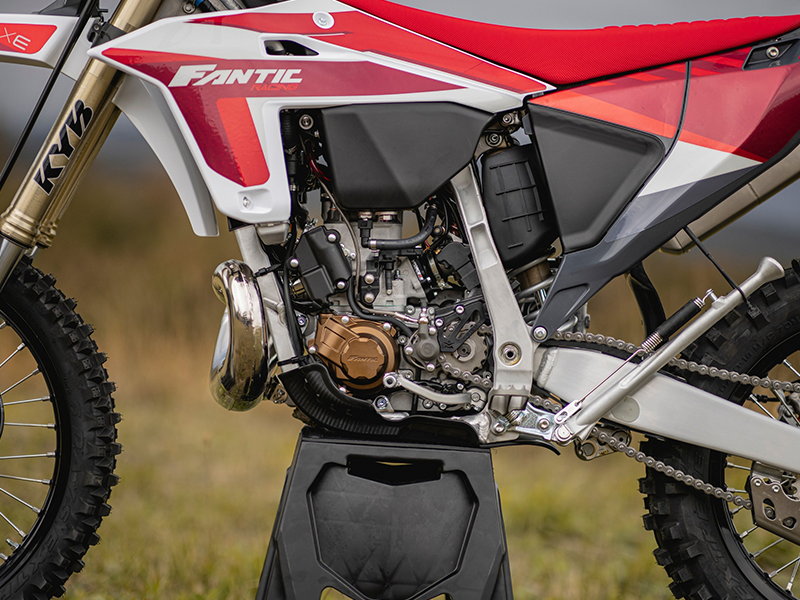

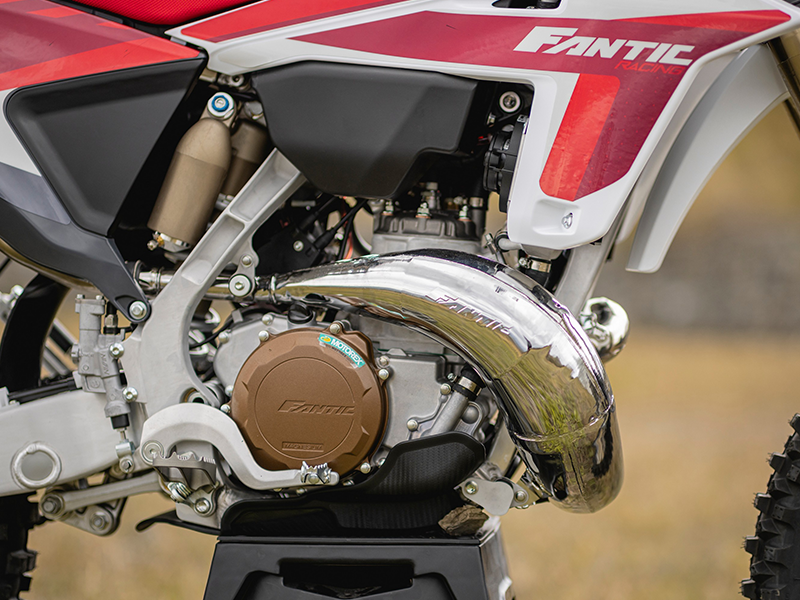

XE300 is a motorbike dedicated to uncompromising performance thanks to the best-performing 300cc engine on the market. The first engine in Fantic's Racing range was developed, tested and produced in Italy by Motori Minarelli, the latter acquired by Fantic in 2020 from Yamaha Motor Europe. A compact, technological and extremely high-performing engine, which guarantees great power, but a regular and full torque curve at all speeds.
The technology stored inside this jewel guarantees its brilliant performance, first and foremost due to a double injector electronic injection system which ensures excellent regularity of operation and E5 Plus compliance. The exhaust valve is electronic, allowing a full and vigorous torque curve at every speed. The electric starter designed by Minarelli ensures immediate starts in all conditions. Finally, the hydraulic clutch ensures precision and minimal effort on the lever.
The cycling sector is top class and differs from all the competitors on the market. It is the only 300 2T that has been developed around a fine aluminium frame with a semi-dual cradle which ensures the best possible rigidity/lightness ratio. Like the other siblings in the enduro range, it confirms the Kayaba suspension with 48mm SSS fork, for years a point of reference in the off-road world. It is thus an extremely agile motorbike, with unrivaled handling qualities in its category.

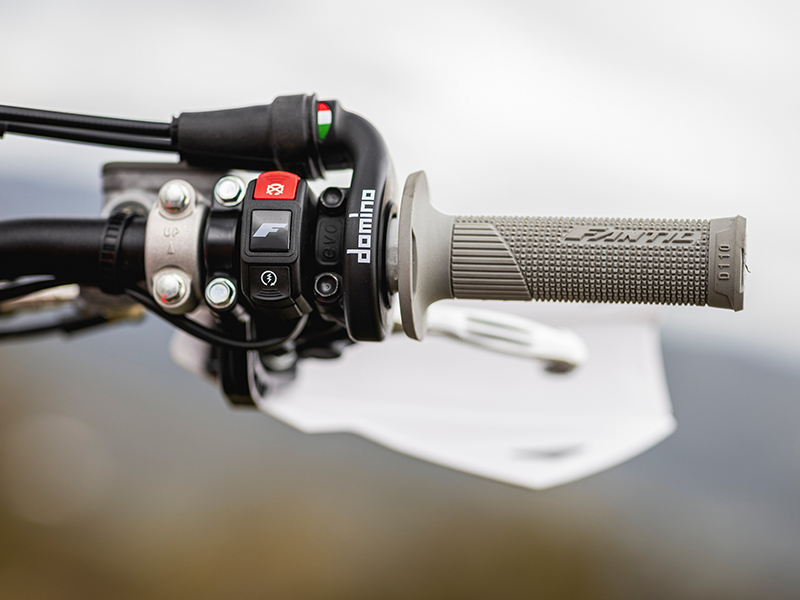

The explosiveness of the 2-stroke is also managed by the first-rate electronic component, primarily the multilevel traction control, perfect for tackling different conditions and a cutting-edge double handlebar mapping switch. Deep study was also reserved for the handlebar positions of the switches and buttons, allowing great functionality, with reduced spaces and minimal design. Configuration LEDs, multilevel Traction control setting and double map switch are positioned on the left, with only the classic kill switch on the right.

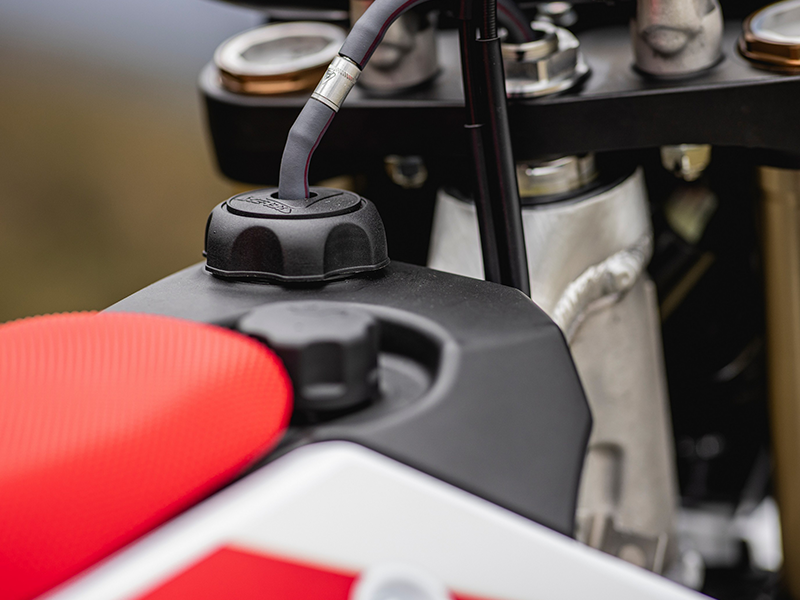

Great functionality is also guaranteed from a maintenance point of view with direct access to the air filter. Last but not least, is the ergonomic aspect studied by the Fantic test team, which boasts minimal dimensions and maximum centralization of masses. The oil and petrol tank are integrated, the conveyors are narrow and ergonomic; the rear axle has been completely redesigned compared to Fantic's other 2-stroke offroad models, ensuring room for many more components, but maintaining the same overall dimensions.
Data from the manufacturer. The measured values may differ slightly depending on the type of instrumentation used and environmental conditions present at the time of measurement.
SPECIFICATIONS
ENGINE
Type | Liquid-cooled single-cylinder 2-stroke with reed valve intake and electronically controlled exhaust valve
Displacement | 292,9 cc
Injection | indirect with double injector
Bore | 72.0 mm
Stroke | 72.0 mm
Compression Ratio | 11,5:1
Starting System | electric starter
Lubrication System | separate mixer
Transmission | 5-speed
Clutch | Wet multi-disc with hydraulic control (STM actuator - BREMBO PUMP)
CHASSIS
Frame Type | Aluminium semi double cradle
Caster angle | 27.7°
Trail | 122 mm
Rear Frame | Aluminium
Swingarm | Aluminium with variable section and progressive link
Rims | 21x1.60 – 18x2.15
Tyres | 90/90x21 - 140/80x18
Brakes | Hydraulic disc ø270mm - Hydraulic disc ø240mm
Front Suspension | KYB ø48 mm, fully adjustable, wheel travel 300 mm
Rear Suspension | KYB, fully adjustable, wheel travel 315 mm
OVERALL DIMENSIONS
Length | 2200 mm
Width | 825 mm
Seat Height | 970 mm
Wheelbase | 1485 mm
Wet Weight | 107 kg
Fuel tank capacity | 9.0 l
Engine oil quantity | 0.8 l
Dual mapping with handlebar switch | Hard/Soft
Traction control | Multi-level
Front/Rear Light | Full Led
Battery | Lithium
